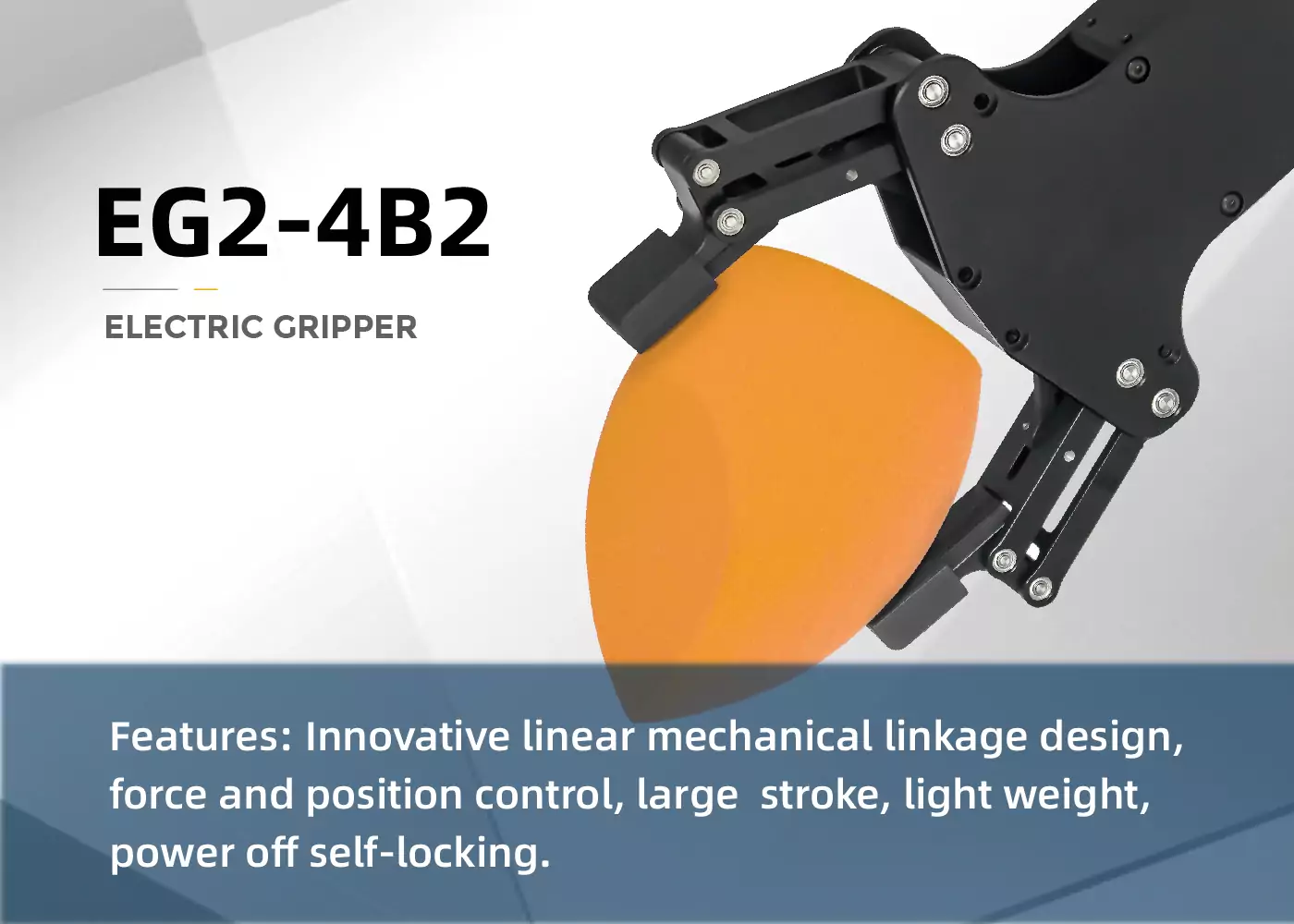

EG2-4B2 Electric Gripper

High-performance micro linear servo actuator for medium-to-high precision motion
Integrated motor, gearbox, position encoder, and controller
Smooth, stable, and repeatable linear actuation
Robust design suitable for demanding automation and robotics tasks
Easy to integrate into compact robotic mechanisms
Ideal for robotic joints, automation systems, R&D projects, and motion control

Description

Specification	Details
Model	EG2-4B2
Communication Interface	RS485

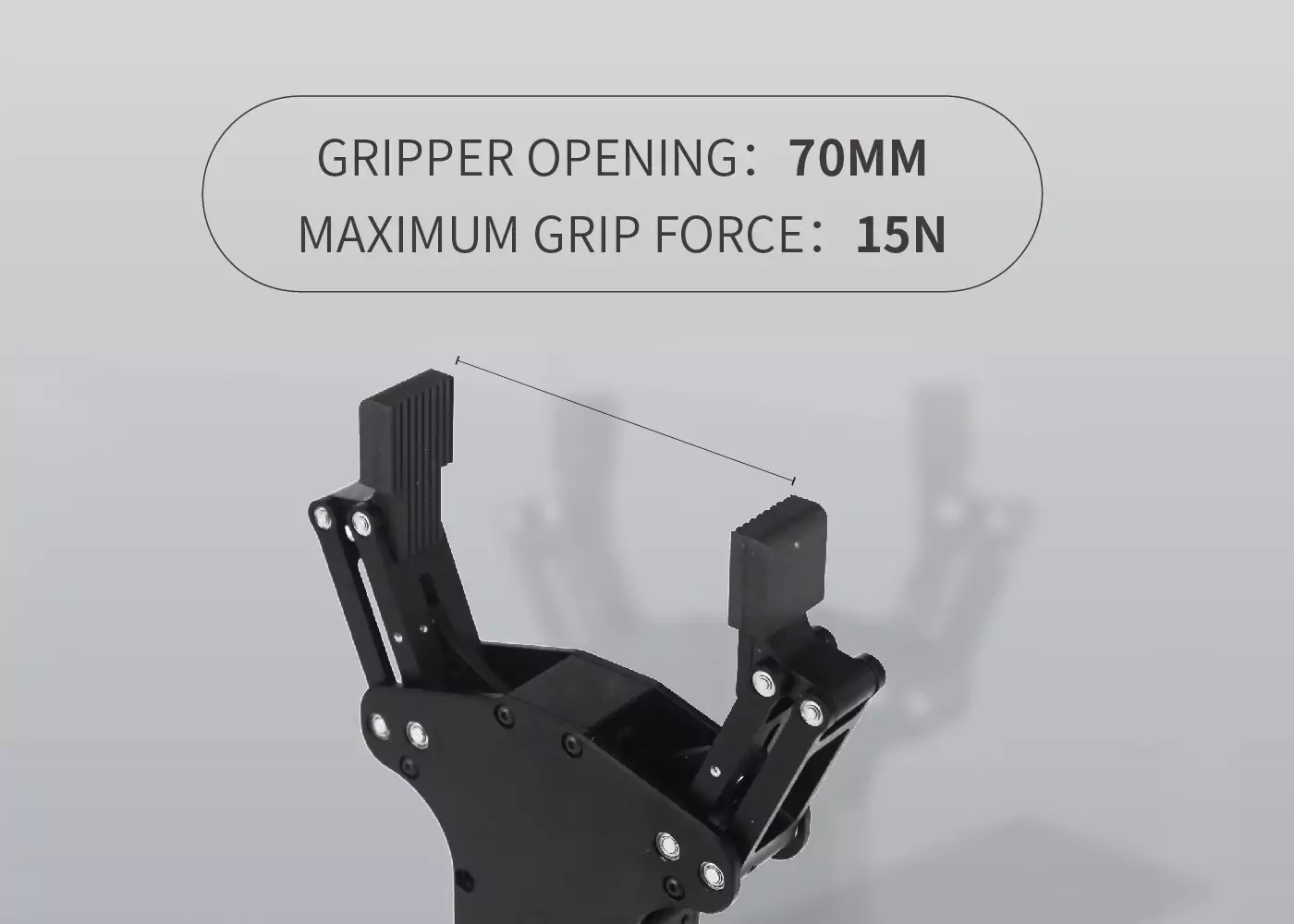

Full Stroke (Both Sides)	70 mm
Weight	223 g
Grip Force Range	0–15 N
Grip Force Accuracy	±1 N
Operating Voltage	DC 24 V ±10%
Peak Current	0.7 A
Positioning Accuracy	±0.5 mm
Maximum Speed	97 mm/s
Full Stroke Closing Time	0.85 s
Protection Level	IP40
Recommended Working Temperature	0–40 °C
