| Product Name |
LASF10 Series Micro Linear Servo Actuator |
| Type |
Micro Linear Servo Actuator |
| Drive Method |
Servo motor-driven linear motion |
| Structure |

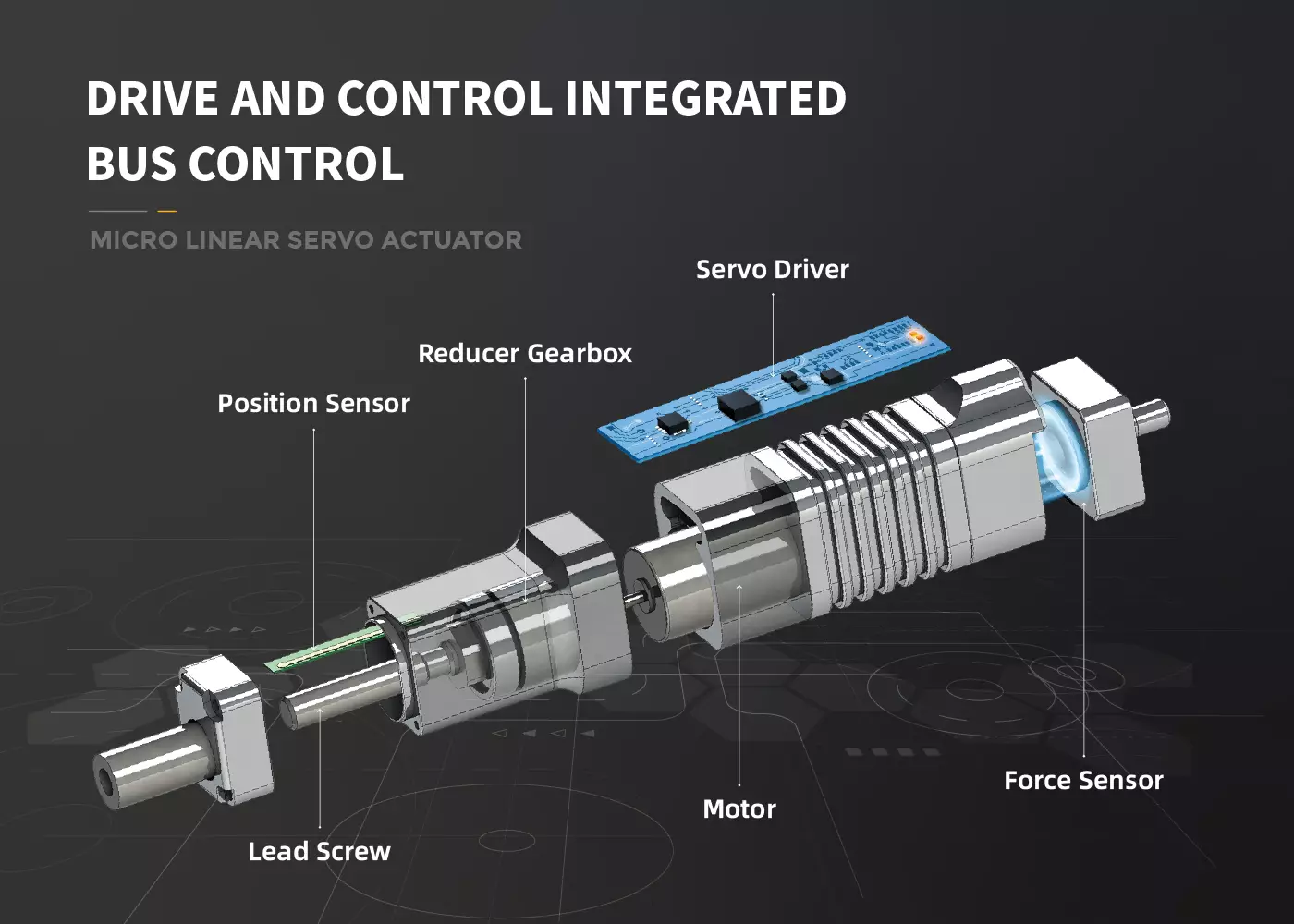

Integrated motor, reducer, screw, encoder |
| Rated Voltage |
24V DC |
| Stroke Range |
10 mm (customizable options available) |
| Rated Thrust |
Up to 100 N |
| Peak Thrust |
Higher short-duration thrust supported |
| Position Accuracy |
High-precision closed-loop control |
| Repeatability |
±0.02 mm |
| Speed |
Adjustable based on load and control profile |
| Feedback |
Built-in encoder |
| Control Mode |
Position / Speed / Force control |
| Communication Interface |
CAN / RS-485 (model dependent) |
| Protection Level |
Industrial-grade design |
| Operating Temperature |
-10°C to +50°C |
| Mounting Type |
Multi-directional mounting support |
| Application Areas |
Robotics, medical devices, automation, R&D |
