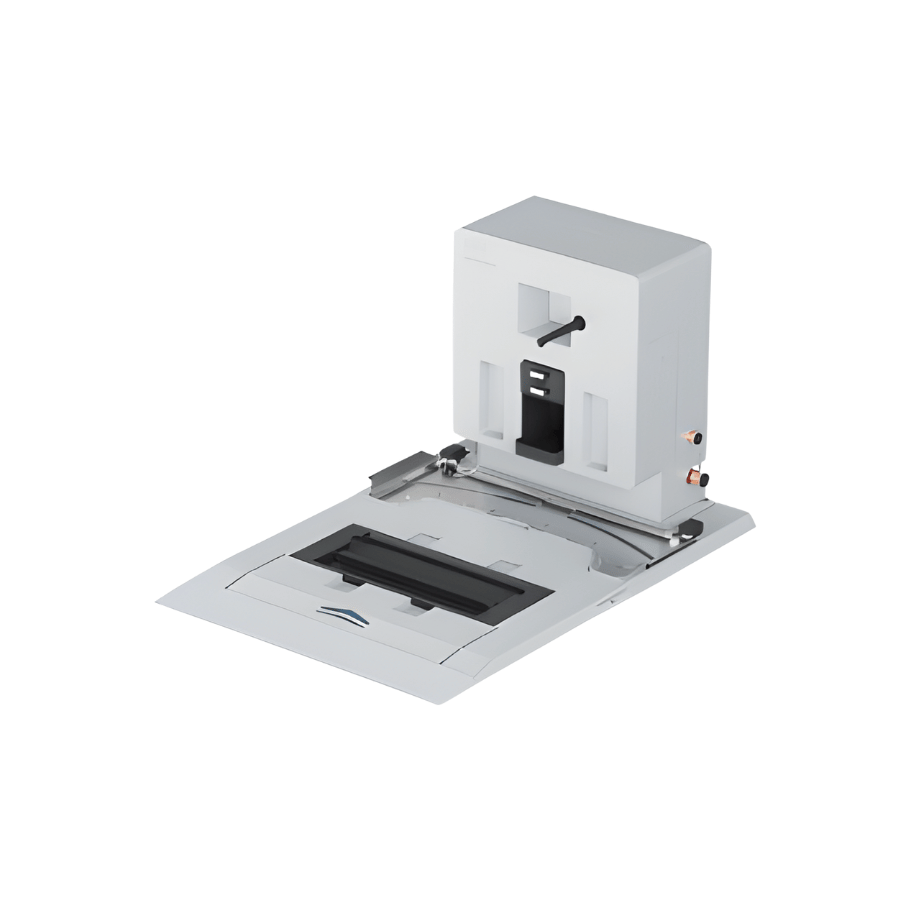

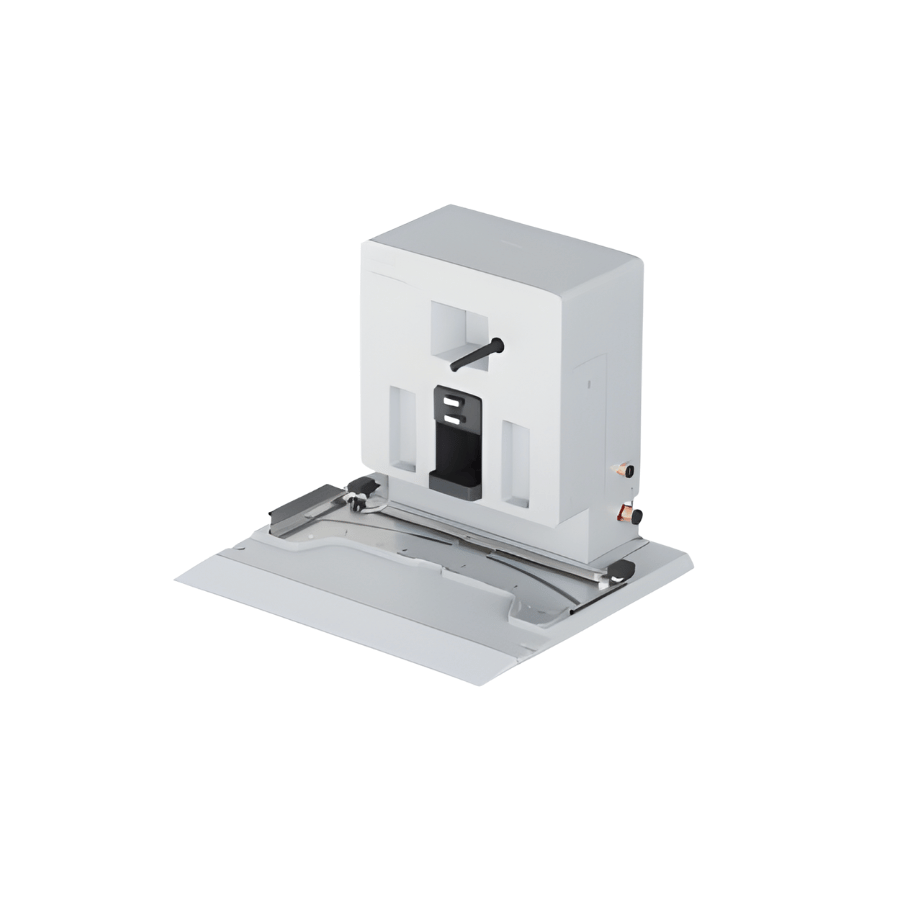

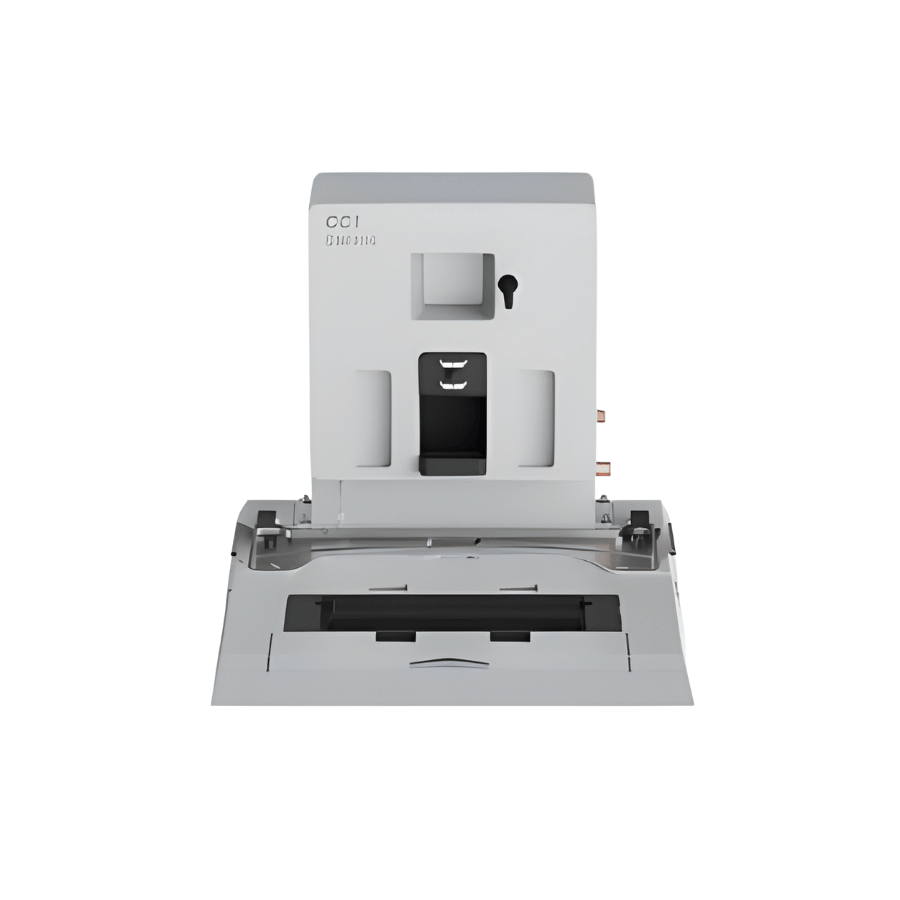

PUDU Self-Cleaning Docking Station

Product Overview

  • The Self-Cleaning Docking Station/Self-Cleaning Docking Station Pro is engineered to work seamlessly with CC1 Series robots, delivering automatic charging, cleaning, and maintenance for a fully hands-free experience.

Key Functions

  • Supports automatic charging to keep your CC1 robot ready at all times.

  • Provides auto water supply and drainage for continuous cleaning performance.

  • Offers automatic detergent dispensing for hassle-free upkeep.

  • Handles self-cleaning of the squeegee and roller brush, maintaining peak efficiency.

  • Ensures smooth connectivity with built-in Bluetooth communication.

Product Dimensions

  • Standard Docking Station: 374 × 618 × 546 mm (14.72 × 24.33 × 21.50 in)

  • Self-Cleaning Docking Station: 632 × 715 × 571 mm (24.88 × 28.15 × 22.48 in)

  • Self-Cleaning Docking Station Pro: 1013 × 715 × 571 mm (39.88 × 28.15 × 22.48 in)

Product Weight

  • Docking Station: 25 kg (55.12 lb)

  • Self-Cleaning Docking Station: 35 kg (77.16 lb)

  • Self-Cleaning Docking Station Pro: 41 kg (90.39 lb)

Electrical Specifications

  • Input Voltage: 100–240 Vac, suitable for global power standards.

  • Output Voltage: 29.2 Vdc for stable and safe charging performance.

Operating Environment

  • Working Temperature: 0–40°C, ideal for most indoor settings.

  • Working Humidity: Up to 90% at 40°C.

  • Storage Temperature: −20–70°C for safe long-term storage.

Installation Requirements

  • Must be anchored to the floor or placed against a wall for stable operation.

External Requirements

  • Requires access to water supply, floor drain, and power source.

  • Compatible with the Mobile Water Station (optional) for flexible installation.

Description

Accessory Highlights

Deep Squeegee Cleaning
Experience powerful squeegee cleaning with a 100W ultrasonic system paired with 65°C hot water, ensuring thorough removal of grime, streaks, and residue. This combination helps prevent streak marks and eliminates secondary contamination for consistently spotless results.

Deep Roller Brush Cleaning
Once the cleaning task is complete, the robot returns to the dock automatically, where the roller brush undergoes an intensive cleaning process. It effectively removes over 95% of stuck debris, keeping the brush fresh and reducing leftover dirt on floors.

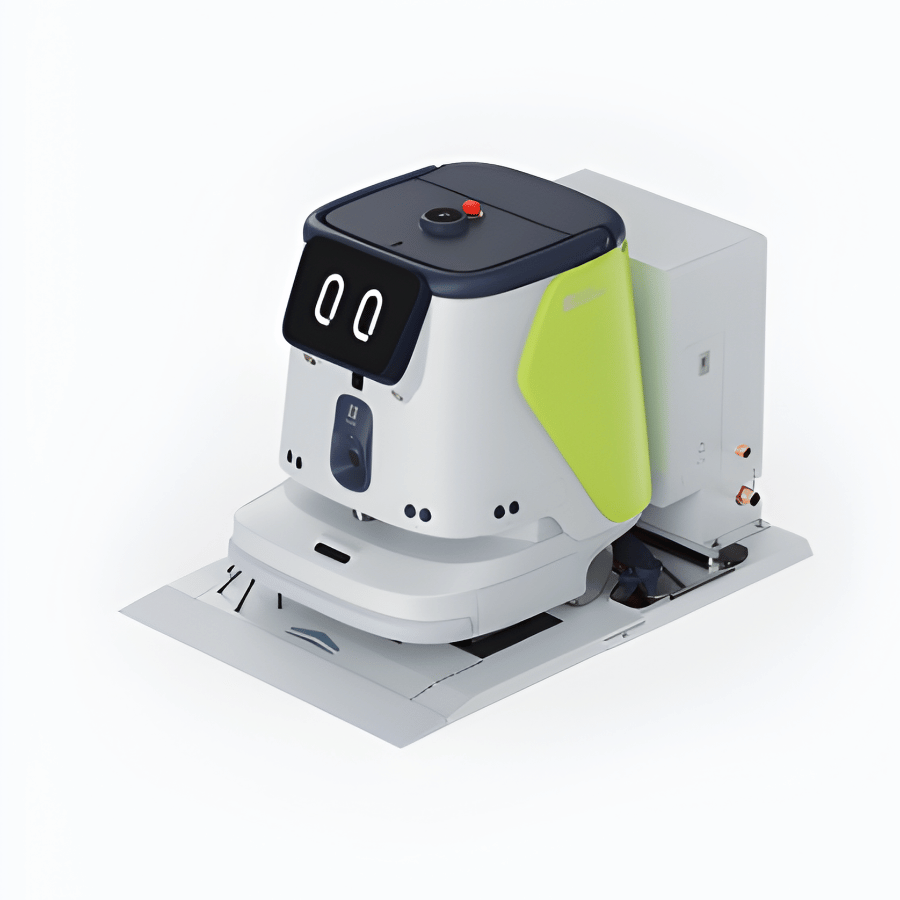

Smart Coordination With CC1 Pro Detection
The CC1 Pro intelligently identifies signs of secondary contamination and docks itself for an immediate squeegee clean. It maintains a seamless automatic cycle—Detect → Dock → Self-Clean → Resume—for truly uninterrupted cleaning performance.

Boosts Maintenance Efficiency Up to 35×
By automating squeegee and brush cleaning, the system drastically minimizes manual maintenance. This efficiency boost means less hands-on upkeep and more reliable, high-performance cleaning.

Three-in-One Flexible Configuration
One product adapts to any environment. Choose from Docking Station, Self-Cleaning Docking Station, or Self-Cleaning Docking Station Pro—all designed to fit different cleaning needs and operational setups.

Modular Quick-Release Structure
Maintenance becomes simple with a quick-release brush cleaning module and detachable squeegee tank. A single operator can manage cleaning and upkeep effortlessly, reducing downtime and improving convenience.
