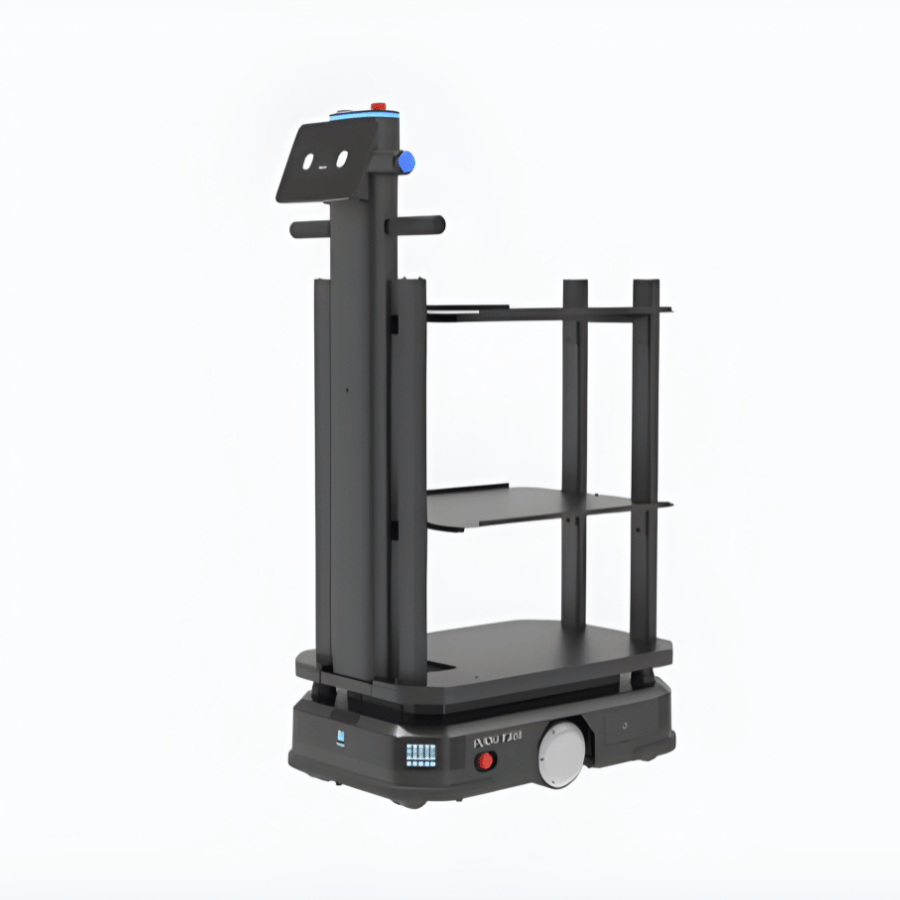

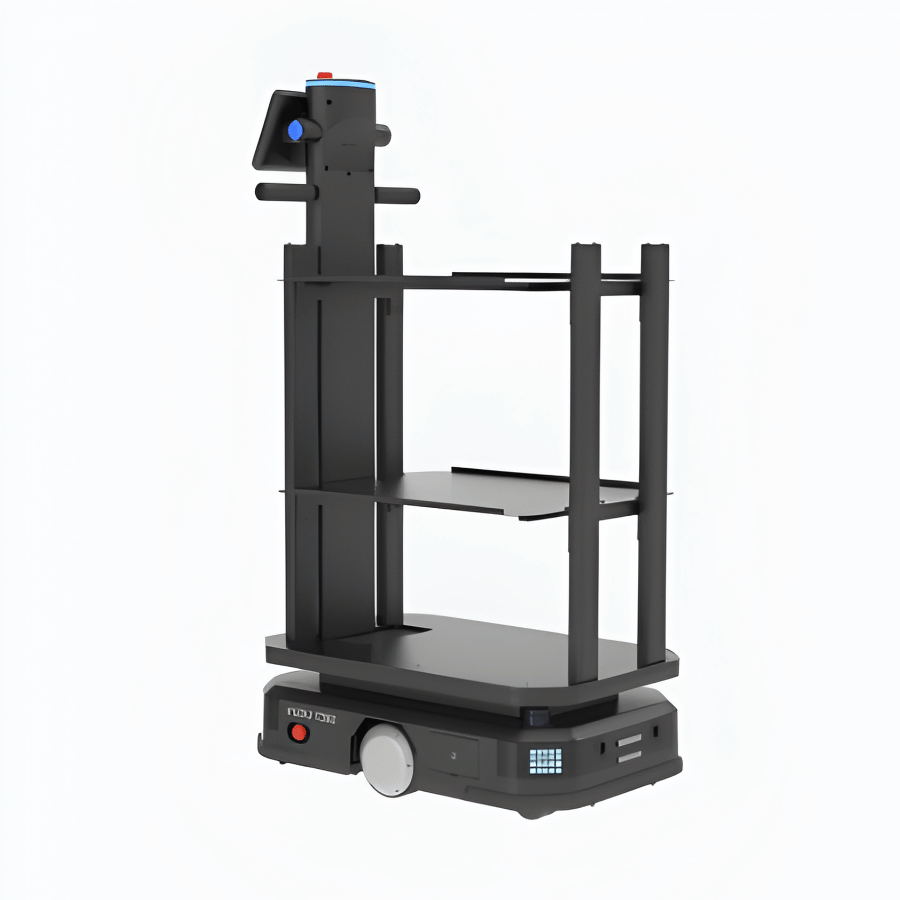

Tray For PUDU T300

Multi-layer tray module designed for use with the PUDU T300 industrial delivery robot.
The modular tray structure allows tool-free installation and removal, enabling quick reconfiguration.
Each tray layer supports heavy loads—up to 100 kg per layer.
Total payload capacity (with tray + cargo) remains up to 300 kg—the same as the robot’s standard load rating.
Cargo space built for real industrial use: a stable, textured surface with edge barriers for safe transport of goods, even at speed or over uneven flooring.

Description

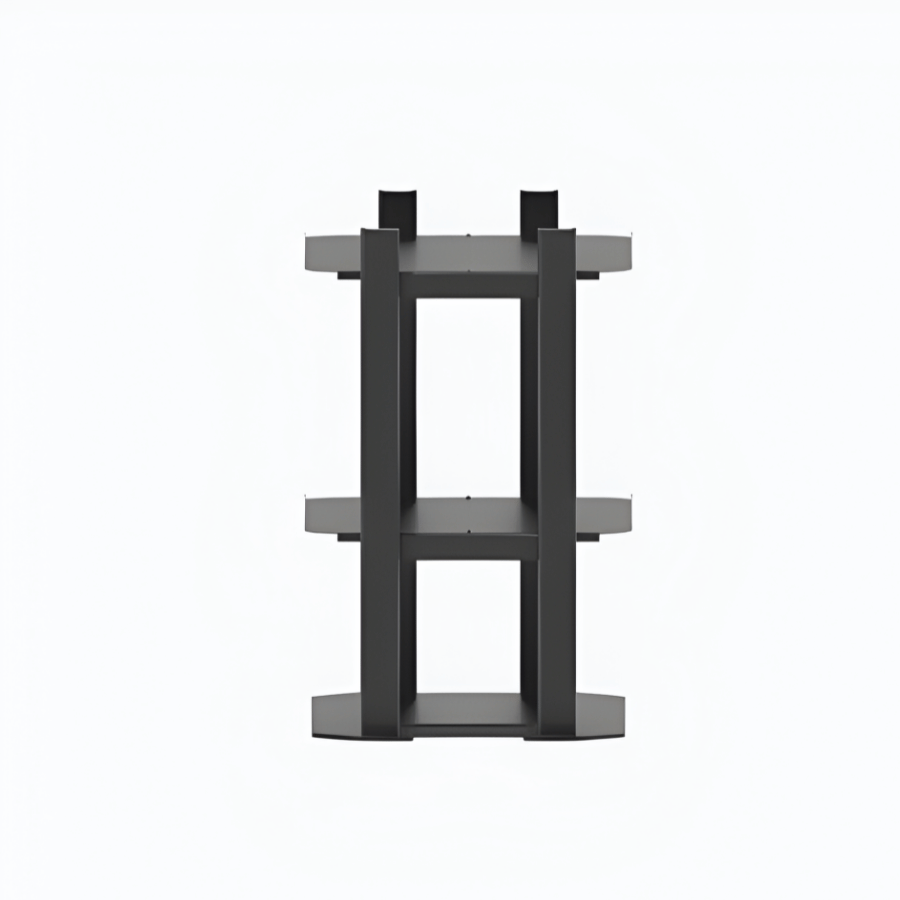

Tray For PUDU T300

Specification	Detail
Compatible Robot	PUDU T300
Module Type	Tray (multi-layer loading tray)
Load Capacity (per layer)	100 kg
Total Load Capacity (tray + cargo)	300 kg (same as robot max load)
Load Space Dimensions	620 mm × 500 mm
Layer Configuration / Heights	Three layers; layer heights from bottom to top: 300 mm / 400 mm / 400 mm—adjustable in increments of 50 mm.
Installation/Removal	Tool-free modular installation/disassembly
Surface & Safety	Industrial-grade metal tray with textured, non-slip surface and edge barriers for cargo stability during transport.
Compatibility	Works with standard PUDU T300 chassis (Tray version)
